DJ64F-40P低温角式截止阀（BW）产品规范
公称压力：4.0MPa
公称通径：10mm～100mm
适用介质：LO2、LN2、LAr等
适用温度：-196～+80℃
连接方式：承插焊
介质流向：由阀瓣下面向上流
DJ64F-40P低温角式截止阀（BW）主要零部件材料
阀体、阀盖：不锈钢
阀瓣、阀杆：不锈钢
填料：PTFE
阀瓣密封圈：PTFE或PCTFE

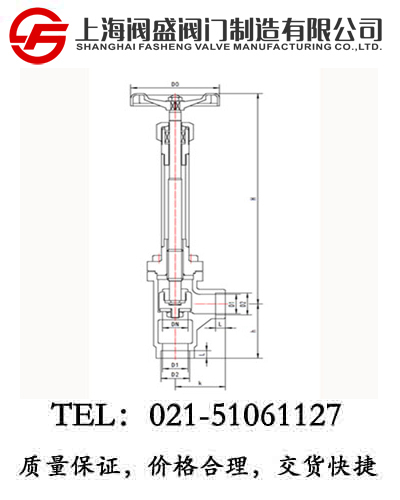

DJ64F-40P低温角式截止阀（BW）外型尺寸与连接尺寸
|
产品型号 |
DJ64F-40P低温角式截止阀 |
重量
(kg) |
|
产品代号 |
通径
DN(mm) |
尺 寸(mm) |
|
k |
h |
H1 |
H2 |
L |
D1 |
D2 |
D0 |
|
433K10AB2A3 |
10 |
35 |
20 |
268 |
260 |
8 |
10 |
14.5 |
65 |
1.4 |
|
433K15AB2A3 |
15 |
40 |
25 |
268 |
260 |
8 |
15 |
18.5 |
65 |
1.6 |
|
433K20AB2A3 |
20 |
45 |
30 |
332 |
320 |
8 |
20 |
25.5 |
100 |
2.3 |
|
433K25AB2A3 |
25 |
50 |
35 |
332 |
320 |
8 |
25 |
32.5 |
100 |
2.5 |
|
433K32AB2A3 |
32 |
55 |
40 |
400 |
380 |
10 |
32 |
38.5 |
120 |
4.9 |
|
433K40AB2A3 |
40 |
60 |
50 |
400 |
380 |
10 |
40 |
48.5 |
120 |
5.1 |
|
433K50AB2A3 |
50 |
80 |
60 |
493 |
470 |
10 |
50 |
57.5 |
160 |
10.4 |
|
433K65AB2A3 |
65 |
90 |
70 |
493 |
470 |
10 |
65 |
76.5 |
160 |
13.5 |
|
433K80AB2A3 |
80 |
100 |
80 |
538 |
500 |
15 |
80 |
89.5 |
200 |
23.6 |
|
433K100AB2A3 |
100 |
110 |
90 |
550 |
510 |
15 |
100 |
108.5 |
240 |
31.1 |
